• Colors other than red are optional and quoted upon request.
  • $0.00

Dimensions and Weight

Size – Overall without Options (L x W x H) 53 1/2” x 35 ½ “ x 38 ½”
Weight without Options 400 lbs
Ground Clearance 2 ¾”
Seat Height from Ground 27”
Minimum Isle Clearance 37”
Deck Height 5 1/4″
Driver Capacity 400 lbs


Maximum Speed (Programmable to less) 13 mph
Turning – Curb to Curb 82 inches


Motor Separately Excited DC Motor by D&D
Controller 300 Amp
Batteries Two Sealed Lead Acid (AGM) 12 Volt
Charger Onboard 120 VAC Charger

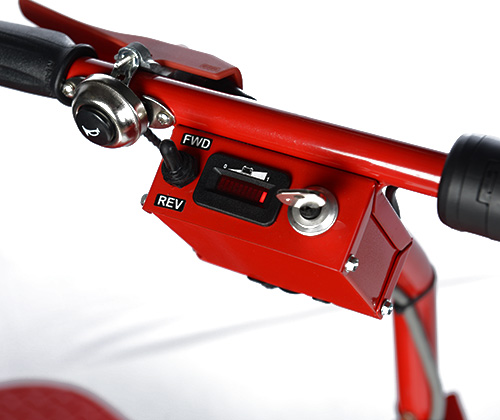

Speed Control Twist Grip (like a motorcycle)
Transaxle Heavy Duty Dana Spicer®
Parking Brake Electromagnetic (automatic)


Body 14 gauge Diamond Plate Steel
Chassis 1 ½” O.D. x .125” wall Round Tubing
Finish Special Powder Coating baked at 425° F
Rear Tires 16/6.50 x 8 4 Ply
Front Tire 13/6.50 x 6 4 Ply

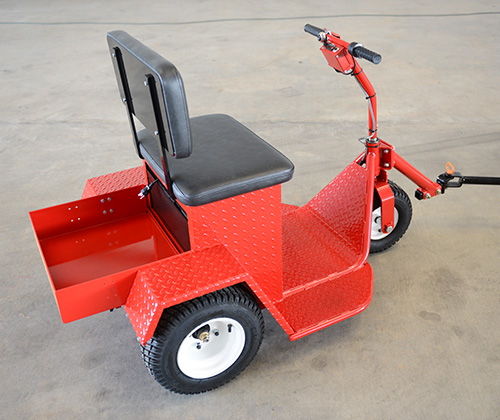

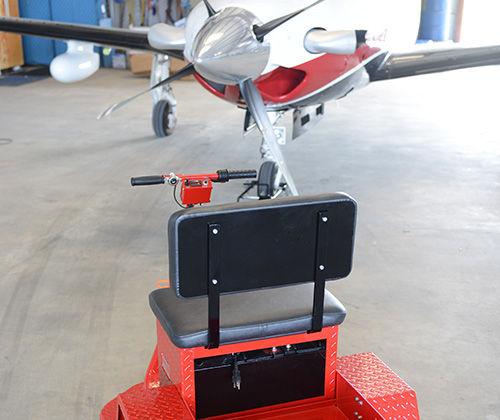

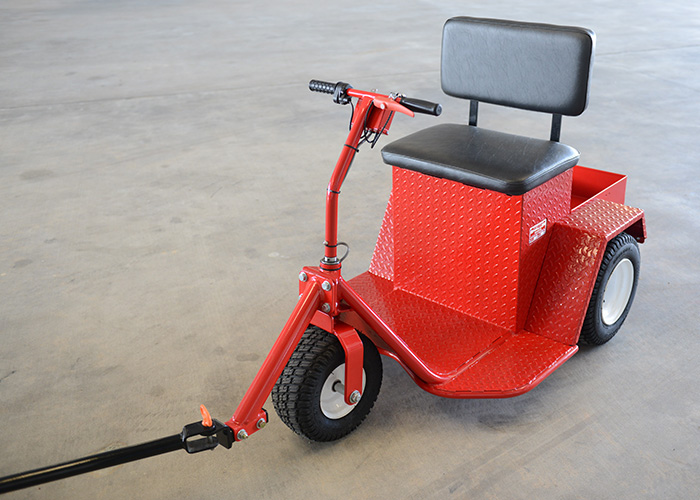

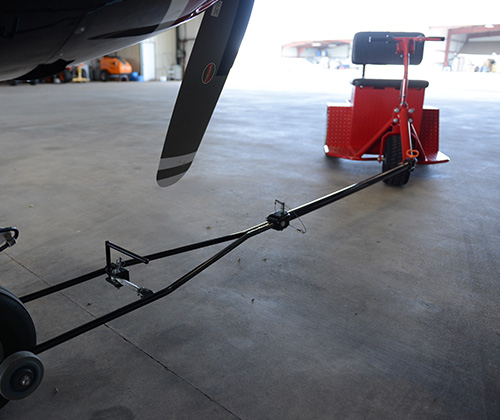

The TrikeKART was originally intended for transportation around larger industrial facilities to reduce the time it takes to walk. Golf carts are commonly used for this application, but the high initial cost and large turning radius of golf carts makes the TriKART an attractive alternative. The TrikeKART is very powerful and can tow a small trailer or other rolling equipment. Besides being used to play golf or tow aircraft, there are many other uses for the TrikeKART that we haven’t thought of yet.

Submit your order and an American Kart Manufacturing representative will contact you to complete your purchase.
